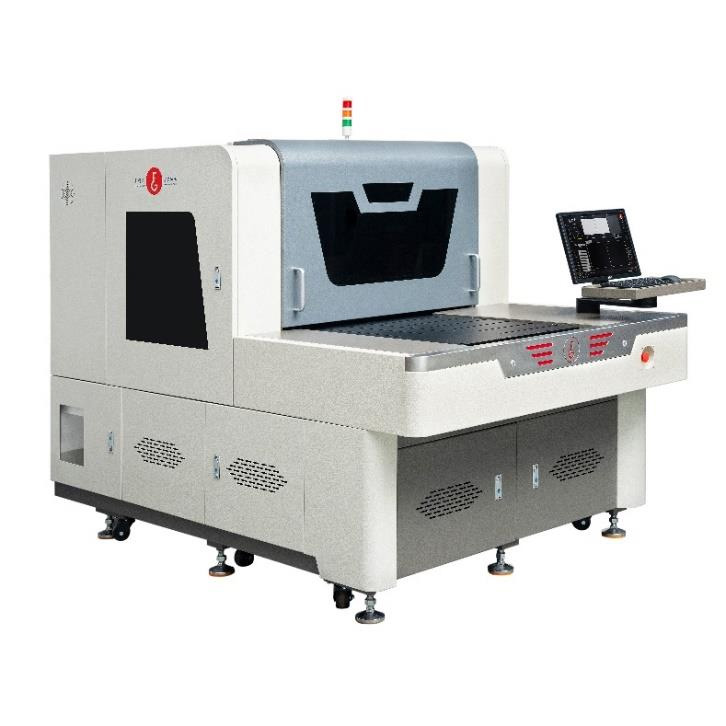

PCB circuit inkjet printer (single worktable)

This PCB circuit inkjet printer can print PCB circuit, circuit characters, QR codes on PCB boards, replacing traditional manual screen printing, saving labor costs and the production process and costs of screen production. It also avoids quality issues such as deformation of film and screen production, improving quality and reducing consumption for factories, and creating greater competitiveness!

Request a Quote

Characteristics & Advantages

Core technologies that set FULILION inkjet printers apart

1.This machine is driven by a linear motor, with low noise and high accuracy. The base and crossbeam are made of marble, which is highly stable, high-precision, and durable;
2.Using pcb edge positioning, there are positioning pins on the left and down of the worktable for easy positioning and easy operation;
3.Memory clamping, without the need to manually input the size of the board, simply place the board on the workbench, drag the horizontal and vertical fixtures to the board edge, and the machine automatically learns and remembers the position, which is simple, convenient, and efficient;
4.Adopting high-end printing head, with fine characters, controllable line width, and controllable thickness of ink. Adopting the latest LED UV lamp curing system, it has good uniformity of illumination, two stage adjustable power, and precise adjustment of the distance between the nozzle and the UV lamp.it can be done immediately curing after printing and can be directly etched;
5.Variable point control inkjet, also known as grayscale printing, or "multi bit printing," refers to the function of fusing multiple ink dots into a large ink dot within a nozzle hole, which can spray different sizes of ink dots. Gray scale printing has a good effect on the transition color from deep to light, optimizing circuit effects, controlling line width and thickness, and controlling color block thickness (minimum 20 μm Below);
6.Our company has developed a fully enclosed ink circuit internal circulation system, which automatically circulates within the ink circuit. When in standby, it can also make the internal ink indirectly active, preventing ink deposition and accumulation from causing nozzle blockage;
7.Directly using Gerber data printing eliminates the need for film and screen printing, eliminating the need for manual screen printing and other processes, avoiding quality issues in these processes and improving product quality；
8.Especially suitable for small and medium-sized batch production, it reduces the production time of film and screen printing, allows for production at any time, saves time in circuit processing and film and screen printing costs, and accelerates delivery to customers；
9.The single worktable circuit inkjet printer does not have the function of automatic loading and unloading and online fully automatic loading and unloading；

Main Technical Parameters

PCB circuit inkjet printer (single worktable)

Item	Specification/parameters
Max.working Size	L730 x W630 mm
Min.Working Size	L350 x W300mm
PCB Thickness	0.1-7.0mm
Min printing size	H0.6xW0.75mm
Max printing line width	≧0.3/0.3mm
Max printing speed	100-120Side/H
Qty of print head	7-9 PCS
Qty of nozzles	1024/pcs
Printing point size	0.07mm
Max. Resolution	900*1440
Max.white ink block	100*100mm
QR code	Have
Bar code	Have
Min QR code	3*3 mm
Printing ink	GREAT/Taiyo UV ink
Cure Method	UV LED
Positioning Method	pcb edge positioning
Alignment accuracy	35um
Fixed mode	Four edge clamping, min. clamping 3.75mm
Printing mode	Standard/MP/precision
Pressure	5-7KG
Power Supply	AC220V, 3.5KW
Working environment	15-25℃，30-70%
Single worktable	L2255xW1610xH1700mm
Weight	2000KG
