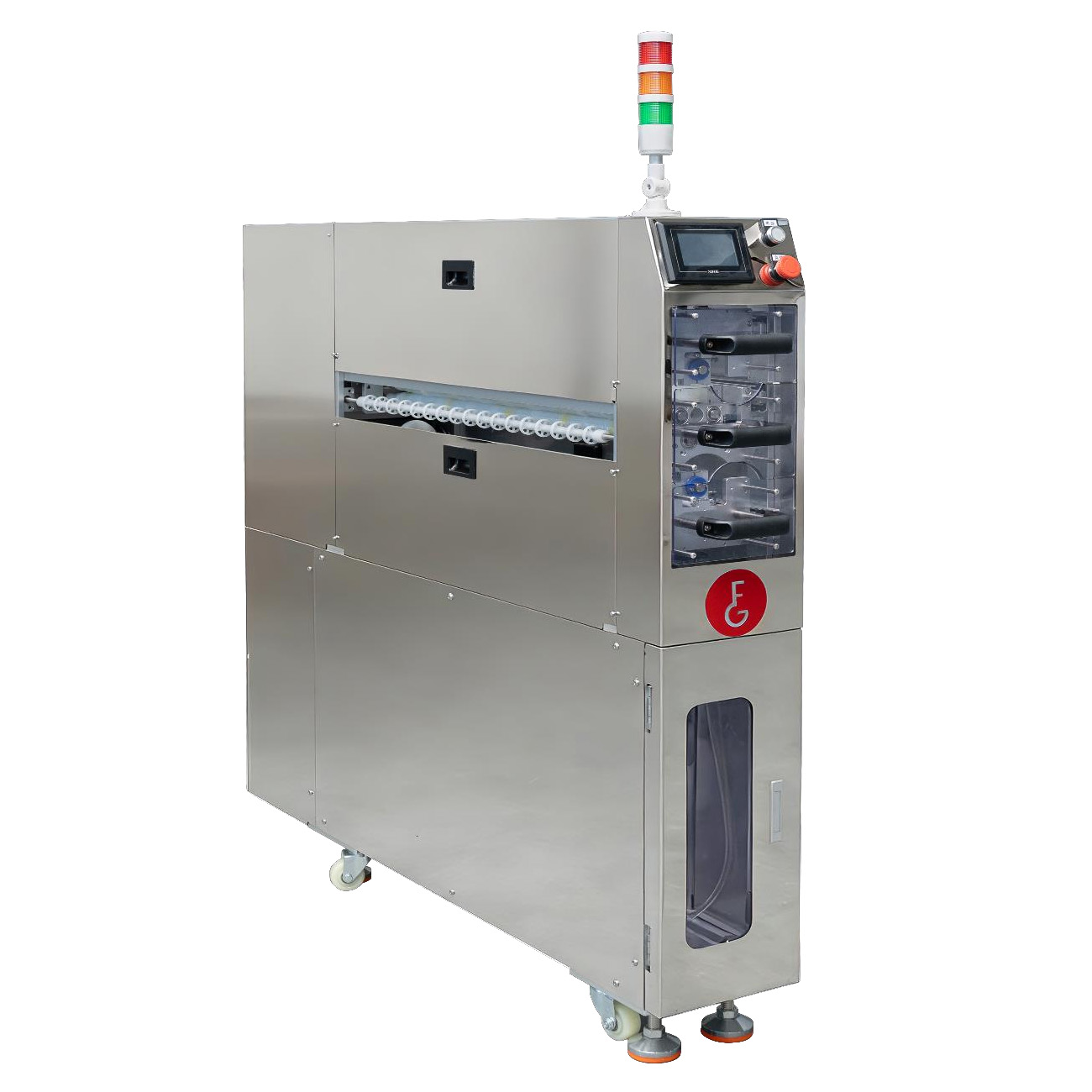

Dust Removal Machine（Adhesive Roller Machine）
The machine is suitable for processes or stations that require cleaning products, which helps to improve the cleanliness of the board surface, reduce the impact of dust and other foreign objects on production quality, reduce scrap, and improve yield rate；
Request a QuoteCharacteristics & Advantages
Core technologies that set FULILION inkjet printers apart
- 1.Equipped with a counter counting function for easy switching of sticky paper rolls；
- 2.Control mode: HMI+PLC control;
- 3.The dust roller adopts a lifting design, which solves the problem of getting stuck when ultra-thin Dimension(mm) boards enter, and can clean both thick and ultra- thin boards;
- 4.Adopting a three suction structure design, the upper and lower dust paper rolls, as well as the middle dust roller mechanism, are both designed as withdrawable, making it convenient to install dust paper rolls and clean dust rollers;
- 5.The transmission adopts non-contact magnetic wheel, which does not shed chips or dust;
- 6.Using high-end adhesive dust rollers, it can significantly improve the micro dust on the surface of cleaning products, and long-term use of the roller surface is pollution-free and permeable；
- 7.There are two models to choose from: single pair paper roller and double pair paper roller；
Main Technical Parameters
Dust Removal Machine（Adhesive Roller Machine）
| ITEM | Specification parameters |
|---|---|
| Conveying inner width | 760 mm |
| Max.PCB Size | W730mm x Unlimited length |
| Min.PCB Size | 250 x 250 mm |
| PCB Thickness | 0.05-10.0mm |
| Pressure | 5-7KG |
| Power Supply | AC220V,200W |
| Speed | 1-8M/Min |
| Frame | Aluminum profile+mirror stainless steel |
| Dimension(mm) | L259xW1433xH1400 (1 pair paper rolls） |
| L366xW1413xH1400 (2 pair paper rolls） | |
| Weight | 100KG |
| PLC | XINJIE |
| HMI | XINJIE |
| Photoelectric switch | PEPPERL+FUCHS /Panasonic |
| Electrical components | CHNT、IDEC… |
| Pneumatic components | AirTAC |
| Motor | Leadshine/ INOVANCE |
