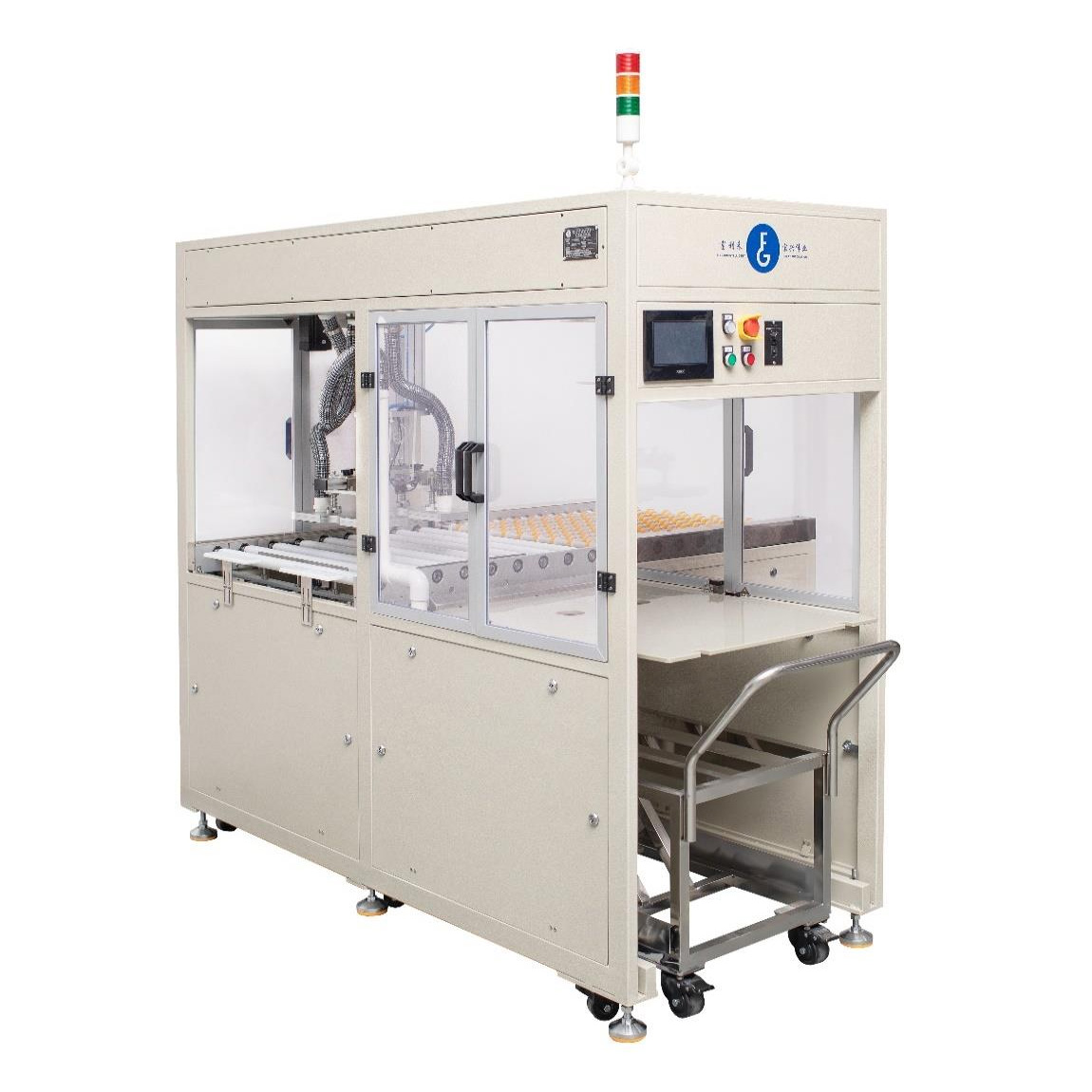

Horizontal Auto Unloader
The machine is suitable for auto loading after inner layer horizontal lines such as AOI,scrubbing machines or cleaning machines, replacing traditional manual operations. It saves manpower and resources, improves quality, and improves customer satisfaction;
Request a QuoteCharacteristics & Advantages
Core technologies that set FULILION inkjet printers apart
- 1.The machine is equipped with a handcarts and two pallets to unloading；
- 2.The machine comes in two models: side exit and vertical exit,Customers choose the model based on the site and space；
- 3.The machine has a central clapping frame function; Align the pcb in the center；
- 4.The machine can use sponge suction cups or octopus, even with the board of have hole, there is no need to adjust the suction cups frequently, which is very user-friendly and practical;
- 5.The arm is equipped with a belt module and stepper motor, ensuring stable performance and durability；
Main Technical Parameters
Horizontal Auto Unloader
| ITEM | Specification parameters |
|---|---|
| Conveying inner width | 788mm |
| Max.PCB Size | W650 x L550 mm |
| Min.PCB Size | L300 x W300 mm |
| PCB Thickness | 0.075-3.2mm |
| Pressure | 5-7KG |
| Power Supply | AC220V,800W |
| Speed | 0-8M/Min |
| Frame | Carbon steel welding+baking paint |
| Convey axle | 304 |
| Dimension | L870xW1750xH1800mm |
| Weight | 400KG |
| PLC | XINJIE |
| HMI | XINJIE |
| Photoelectric switch | PEPPERL+FUCHS /FOTEK… |
| Electrical components | CHNT、IDEC… |
| pneumatic components | AirTAC |
| Motor | Leadshine/ INOVANCE/DELTA |
