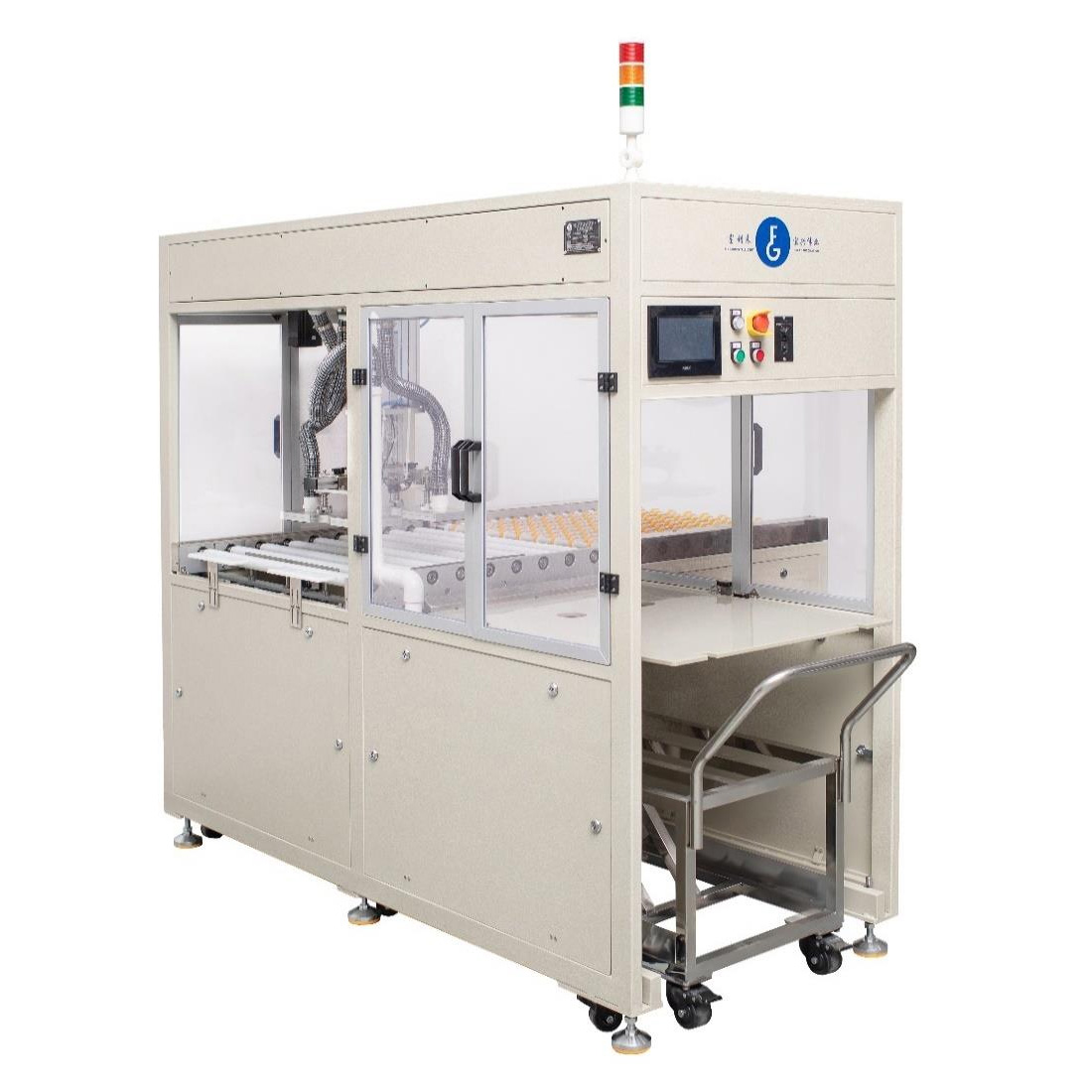

Horizontal Loading And Unloading Buffer
The machine is suitable for dry film laminator, printing machines, or other process. It balances the production speed of upstream and downstream equipment or automatically stores temporary when online equipment failures, solving the problem of poor production caused by different speeds or temporary failures of upstream and downstream equipment,Additionally, it can also transport the boards to other processes for production;
Request a QuoteCharacteristics & Advantages
Core technologies that set FULILION inkjet printers apart
- 1.The machine is equipped with one handcarts and two pallets for loading and unloading；
- 2.This machine has two types of models: side exit and vertical exit, which can be chosen by customers to save space according to the site；
- 3.The machine has a central clapping frame function; Align the pcb in the center；
- 4.The machine can use sponge suction cups or octopus, even with the board of have hole, there is no need to adjust the suction cups frequently, which is very user-friendly and practical;
- 5.The arm is equipped with a belt module and stepper motor, ensuring stable performance and durability；
- 6.The machine can be connected to downstream machines, and the PCB board can be controlled to going straight or temporarily store based on the connection signal;
- 7.When receiving a "demand" signal from downstream machine, temporary storage boards can also be placed in the auto-line to production;
Main Technical Parameters
Horizontal Loading And Unloading Buffer
| ITEM | Specification parameters |
|---|---|
| Conveying inner width | 860mm |
| Max.PCB Size | W650 x L550 mm |
| Min.PCB Size | L300 x W300 mm |
| PCB Thickness | 0.075-3.2mm |
| Pressure | 5-7KG |
| Power Supply | AC220V,800W |
| Speed | 8-10 PNLS/Min |
| Buffer Qty | about 200PNLS |
| Convey axle | 304 |
| Frame | Carbon steel welding+baking paint |
| Dimension | L870xW1750xH1800mm |
| Weight | 400KG |
| PLC | XINJIE |
| HMI | XINJIE |
| Photoelectric switch | PEPPERL+FUCHS /FOTEK… |
| Electrical components | CHNT、IDEC… |
| Pneumatic components | AirTAC |
| Motor | Leadshine/INOVANCE/ FT |
