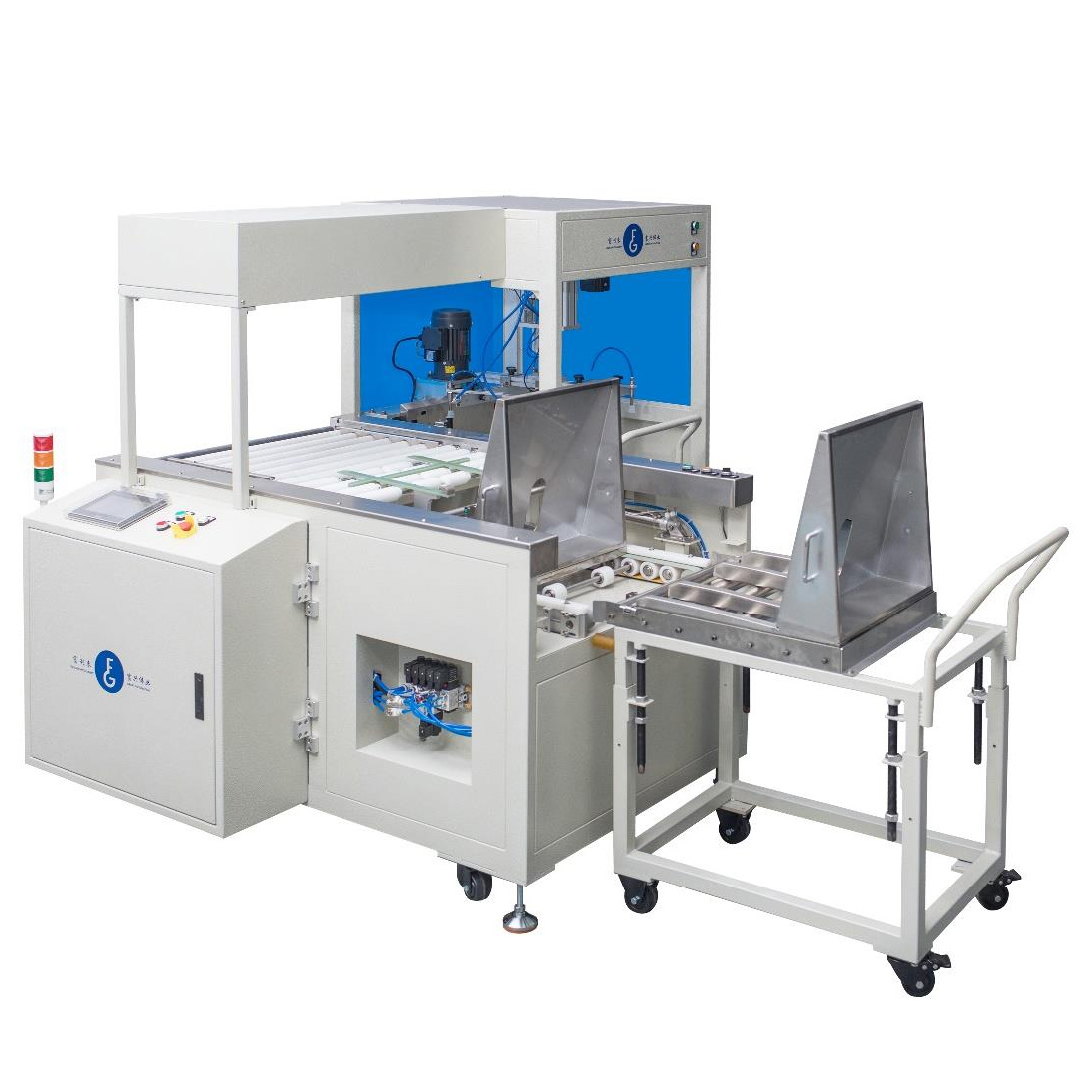

L-rack Add Paper Unloader
This machine is suitable for auto unloading in processes that add paper between board, replacing traditional manual operations, improving factory automation, and saving manpower and material resources;
Request a QuoteCharacteristics & Advantages
Core technologies that set FULILION inkjet printers apart
- 1.The machine standard with two stainless steel L- rack and one trolley;
- 2.The machine has a temporary storage function, so there is no need to stop the machine when replacing the L- rack；
- 3.The machine has a central clapping frame function; Align the pcb in the center；
- 4.The roller conveyor motor and clapper motor both use stepper motors, with precise and adjustable positioning and speed
- 5.The paper grabbing arm adopts a belt module, with a speed of 8-10 pnls/min, improving production efficiency;
- 6.Using PLC+HMI control, and selecting add paper and non-add paper between board functions in the HIM interface;
Main Technical Parameters
L-rack Add Paper Unloader
| ITEM | Specification parameters |
|---|---|
| Conveying inner width | 860 mm |
| Max.PCB Size | W730 x L630 mm |
| Min.PCB Size | W300 x L300 mm |
| PCB Thickness | 0.4-3.2mm |
| Pressure | 5-7KG |
| Power Supply | AC220V, 1.5 KW |
| Speed | 8-10 PNLS/Min |
| Convey axle | 304 |
| Frame | Carbon steel welding+baking paint |
| Dimension | L1500xW1800xH1750mm |
| Weight | 500KG |
| PLC | Mitsubishi |
| HMI | WEINVIEW |
| Photoelectric switch | PEPPERL+FUCHS /FOTEK… |
| Electrical components | CHNT、IDEC… |
| Pneumatic components | AirTAC |
| Motor | Leadshine/ INOVANCE |
