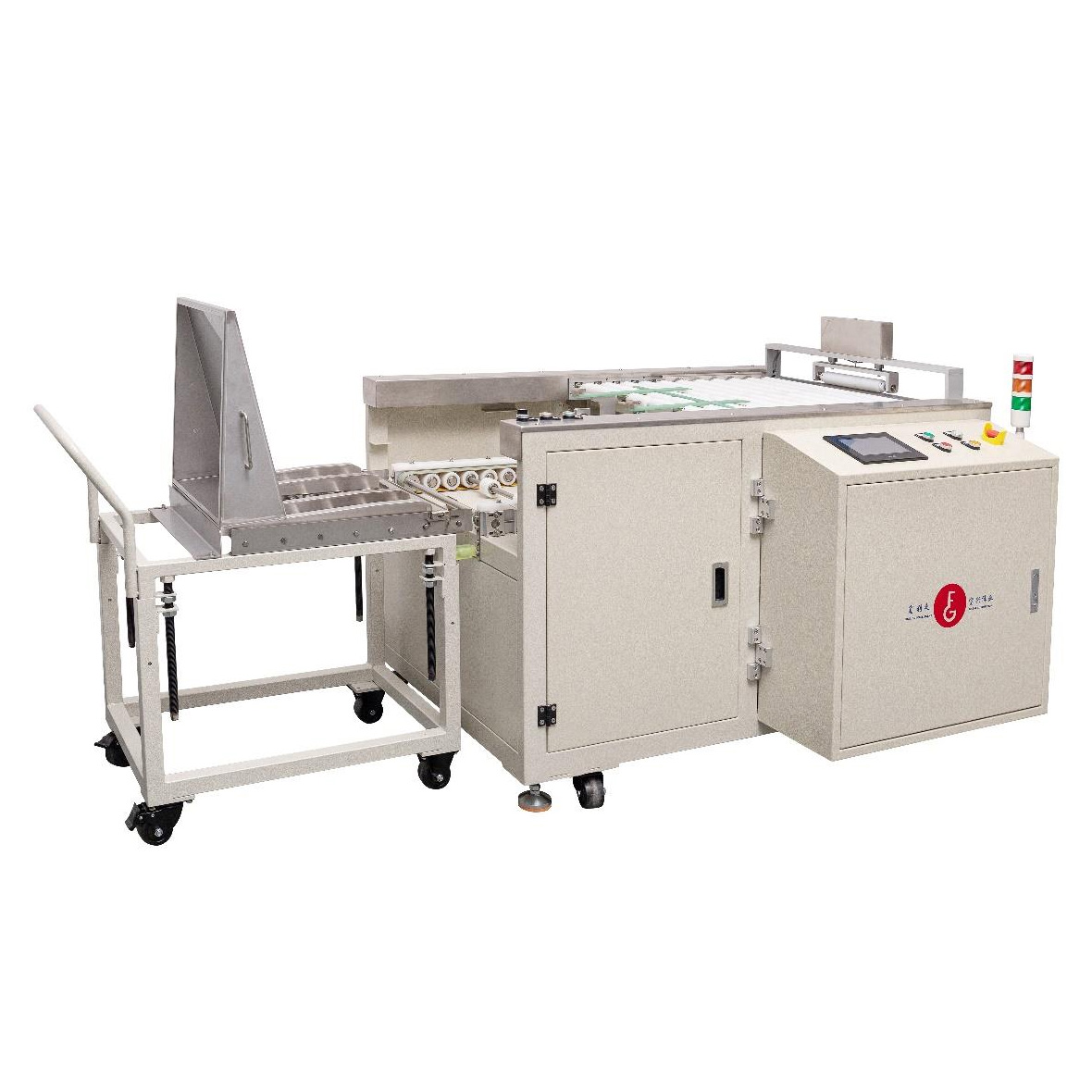

L-Rack Auto Loader
The L-Rack loader is suitable for automatic load before scrubbing machine or Hot air leveling, replacing traditional manual loading. It not only saves manpower and material resources, but also improves quality and customer satisfaction;
Request a QuoteCharacteristics & Advantages
Core technologies that set FULILION inkjet printers apart
- 1.The machine standard with two stainless steel L-rack and one adjustable height Hydraulic trolley;
- 2.there is two panel detection device at the exit of the machine, which will automatically return when the machine detects the presence of two panel boards to prevent accidental flow into the scrubbing machine or pre-treatment line;
- 3.Equipped with clapping and positioning function, it can clap the pcb in alternating positions from left to Electromagnetic right, making the scrubbing machine's brush evenly valve/cylinder used
- 4.The roller conveyor motor and clapper motor both use stepper motors, with precise and adjustable positioning and speed
Main Technical Parameters
L-Rack Auto Loader
| ITEM | Specification parameters |
|---|---|
| Conveying inner width | 860mm |
| Max.PCB Size | W730*630 mm |
| Min.PCB Size | W300 x L300 mm |
| PCB Thickness | 0.5-3.2mm |
| Pressure | 5-7KG |
| Power Supply | AC220V,600W |
| Speed | 8-10 PNLS/Min |
| Frame | Carbon steel welding+baking paint |
| Convey axle | 304 |
| Dimension | L1470xW1250xH1100mm |
| Weight | 300KG |
| PLC | XINJIE |
| HMI | XINJIE |
| Photoelectric switch | PEPPERL+FUCHS /FOTEK… |
| Electrical components | CHNT、IDEC… |
| Electromagnetic valve/cylinder | AirTAC |
| Motor | Leadshine/ INOVANCE |
