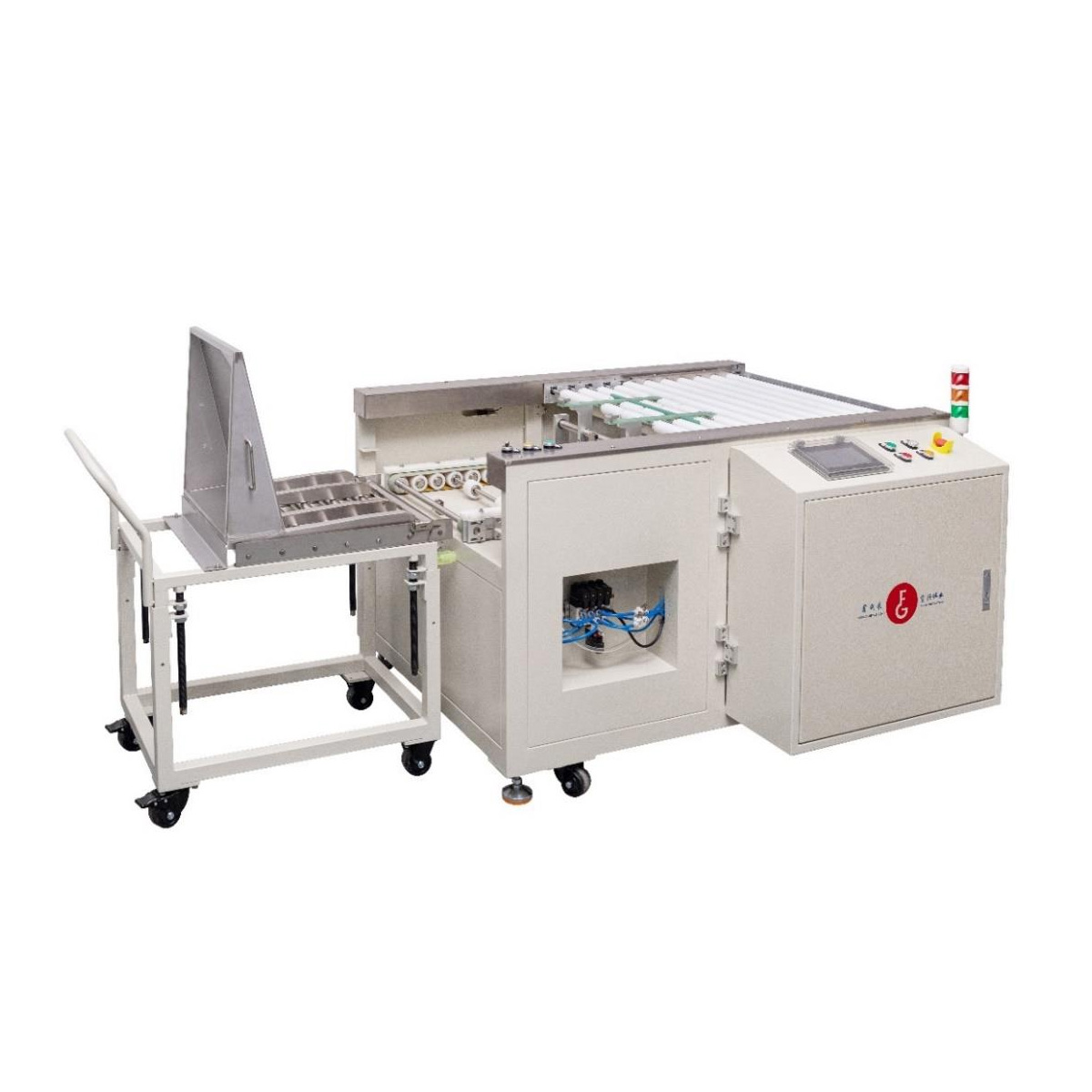

L-Rack Auto Unloader
The L-Rack unloader is suitable for automatic unload after scrubbing machine or Hot air leveling, replacing traditional manual plate collecting and solving the defect of easy to scratch plate parts in simple plate collecting machines. It not only saves manpower and material resources, but also improves quality and customer satisfaction;
Request a QuoteCharacteristics & Advantages
Core technologies that set FULILION inkjet printers apart
- 1.The machine standard with two stainless steel L-rack and one adjustable height Hydraulic trolley;
- 2.The machine has a temporary storage function, so there is no need to stop the machine when replacing the L- rack；
- 3.The machine has a central clapping frame function; Align the pcb in the center；
- 4.The roller conveyor motor and clapper motor both use stepper motors, with precise and adjustable Electromagnetic positioning and speed valve/cylinder
Main Technical Parameters
L-Rack Auto Unloader
| ITEM | Specification parameters |
|---|---|
| Conveying inner width | 860mm |
| Max.PCB Size | W730*L630 mm |
| Min.PCB Size | W300 x L300 mm |
| PCB Thickness | 0.4-3.2mm |
| Pressure | 5-7KG |
| Power Supply | AC220V,600W |
| Speed | 8-10 PNLS/Min |
| Frame | Carbon steel welding+baking paint |
| Convey axle | 304 |
| Dimension | L1470xW1250xH1100mm |
| Weight | 300KG |
| PLC | XINJIE |
| HMI | XINJIE |
| Photoelectric switch | PEPPERL+FUCHS /FOTEK… |
| Electrical components | CHNT、IDEC… |
| Electromagnetic valve/cylinder | AirTAC |
| Motor | Leadshine/ INOVANCE |
