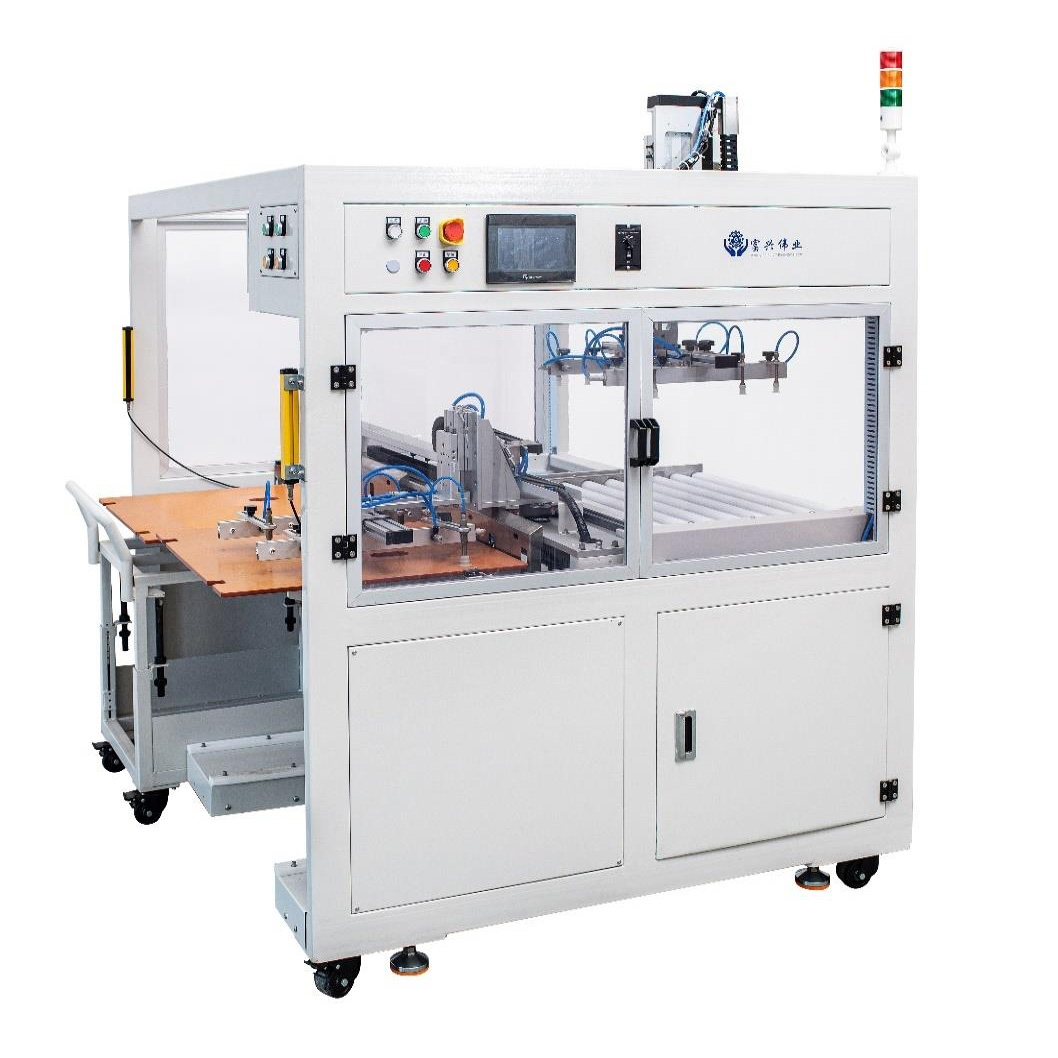

L-type Loader With Paper Interleaving
The machine is suitable for automatic loading before inner layer AIO, inner layer auto registration punch, X-RAY drilling machine,or other film separation processes, replacing traditional manual operations, improving factory automation and saving manpower and resources
Request a QuoteCharacteristics & Advantages
Core technologies that set FULILION inkjet printers apart
- 1.The machine is equipped with two handcarts and four pallets for loading and unloading；
- 2.Using PLC+HMI control, and selecting paper picking and no paper picking functions in the HIM interface
- 3.The arm for grabbing pcb uses a dual screw module and servo motor, which runs quickly, has stable performance, and is durable；
- 4.The paper grabbing arm adopts a belt module and servo motor, and operates independently of the grabbing board arm, with a speed of 9-11 pnls/min, improving production efficiency;
- 5.According to different manufacturing processes, suction cup groups with holes on the board and without holes on the board can be selected for convenience and ease of use;
- 6.There is two panel ultrasound detection device at the exit of the machine, which will automatically alarm when the machine detects the presence of two panel boards;
Main Technical Parameters
L-type Loader With Paper Interleaving
| ITEM | Specification parameters |
|---|---|
| Conveying inner width | 860 mm |
| Max.PCB Size | W730 x L630 mm |
| Min.PCB Size | W300 x L300 mm |
| PCB Thickness | 0.075-3.2mm |
| Pressure | 5-7KG |
| Power Supply | AC220V, 1.9 KW |
| Speed | 9-11PNLS/Min |
| PLC | Mitsubishi |
| HMI | WEINVIEW |
| Photoelectric switch | PEPPERL+FUCHS /FOTEK/KEYENCE… |
| Electrical components | CHNT、IDEC… |
| Pneumatic components | AirTAC |
| Motor | Leadshine/ INOVANCE/DELTA |
| Frame | Carbon steel welding+baking paint |
| Convey axle/pulley | 304 |
| Dimension | L1800xW1780xH2080mm |
| Weight | 500KG |
