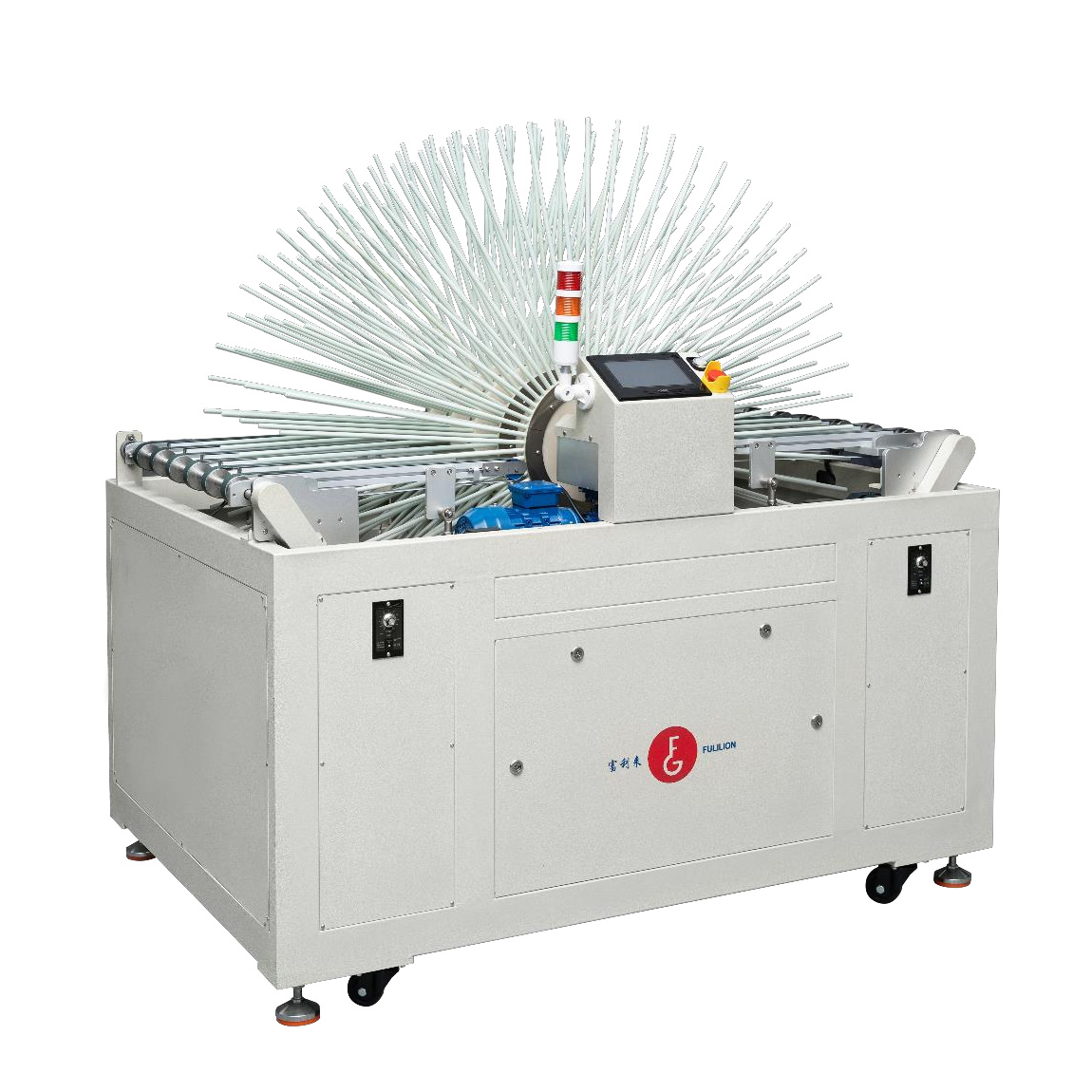

Panel Turnover Machine
The machine is suitable for cooling or flipping after scrubbing machine or UV machine or automatic line, etc. It can create cooling time for PCB board or flip to the other side to the next process for operation;
Request a QuoteCharacteristics & Advantages
Core technologies that set FULILION inkjet printers apart
- 1.The machine can temporarily store 30 pcs pcb and cyclic flipping;
- 2.Used PLC and HMI control, easy operation, high degree of automation;
- 3.The inlet and outlet belt conveyor are separately and independently controlled, with 0-8 meters/min adjustable; onics
- 4.The machine can auto flip to dispose of tail count,no need manual handling;
- 5.The flipping device has an electromagnetic brake to ensure that each flipping stop is stable and does not reverse, causing the pressure plate to become stuck；
- 6.There is a blocking alarm shutdown function, and the outlet end also has a pressing plate alarm shutdown function；
- 7.One side of the sun disk is protected by a stainless steel protective ring, which prevents the rubber wheel from rubbing and falling powder；
- 8.The cooling fan can be selected to enhance the cooling effect；
Main Technical Parameters
Panel Turnover Machine
| ITEM | Specification parameters |
|---|---|
| Conveying inner width | 860 mm |
| Max.PCB Size | W730 x L630 mm |
| Min.PCB Size | L250 x W250 mm |
| PCB Thickness | 0.4-3.2mm |
| Power Supply | AC380V,500W |
| Speed | 8-10 PNL/min |
| Buffer Qty | 30 PNL |
| PLC | XINJIE |
| HMI | XINJIE |
| Photoelectric switch | PEPPERL+FUCHS/KFPS/FOTEK/Aut onics |
| Electrical components | CHNT、IDEC… |
| Motor | FT/DEB |
| Frame | Carbon steel welding+baking paint |
| Convey axle | 304 |
| Dimension | L1600xW1130xH1700mm |
| Weight | 200KG |
