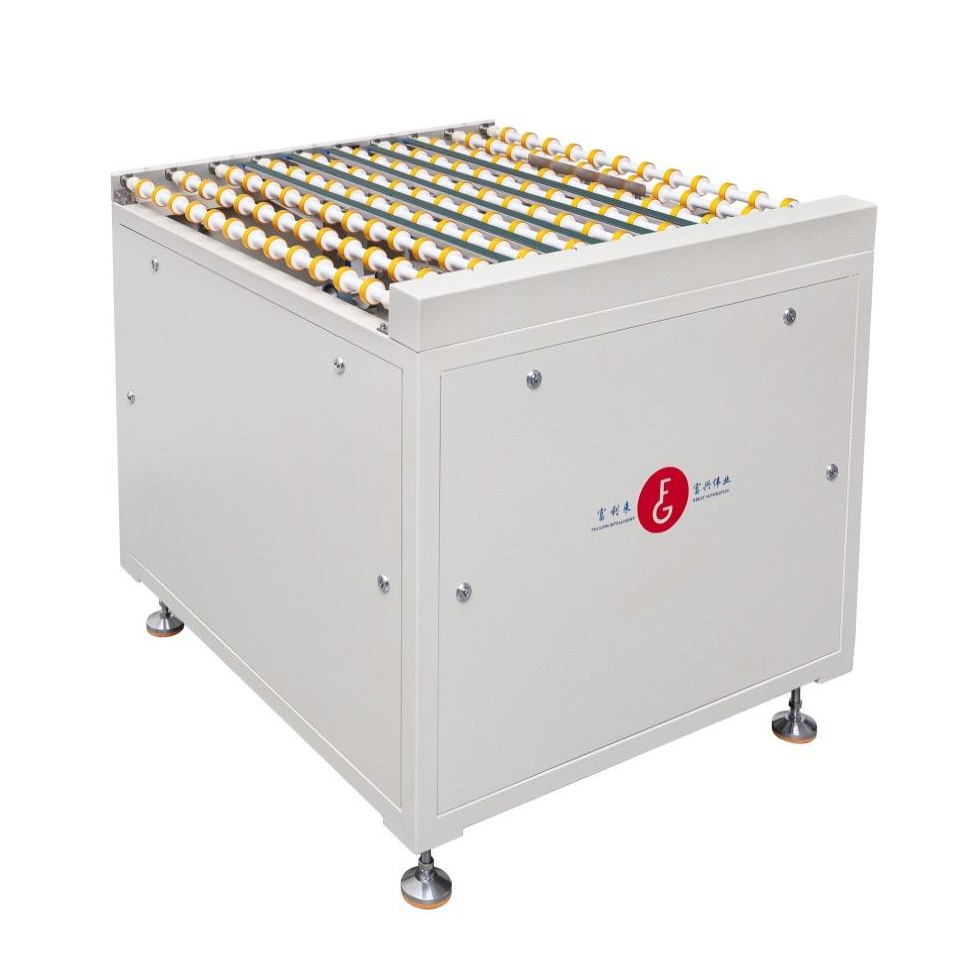

PCB Corner Machine
The machine is suitable for places or processes where the conveying direction of the production line requires a 90 degree angle. Due to limitations in the customer's production site or production needs, it is necessary to transport the board from a certain workstation to the next workstation at a 90 degree angle in the direction of travel；
Request a QuoteCharacteristics & Advantages
Core technologies that set FULILION inkjet printers apart
- 1.This machine can change the production board 90 degrees along the original walking direction for conveying；
- 2.The steering mechanism is a combination of cylinder and belt, which lifts the production board and changes the walking direction by 90 degrees to achieve the purpose of turning the corner；
- 3.Using PLC control, it can achieve the function of connecting the front and rear equipment, and can turn corners or travel straight according to the signals provided by the rear equipment；
Main Technical Parameters
PCB Corner Machine
| ITEM | Specification parameters |
|---|---|
| Max.PCB Size | W730 x L630mm |
| Min.PCB Size | W250 x L250 mm |
| PCB Thickness | 0.075-6.5mm |
| Pressure | 5-7KG |
| Power Supply | AC220V,300W |
| Speed | 1-8M/Min |
| Convey axle | 304 |
| Frame | Carbon steel welding+baking paint |
| Dimension | L960xW1090xH950mm |
| Weight | 100KG |
| PLC | XINJIE |
| Photoelectric switch | PEPPERL+FUCHS |
| Electrical components | CHNT、IDEC… |
| Pneumatic components | AirTAC |
| Motor | Leadshine/ INOVANCE |
