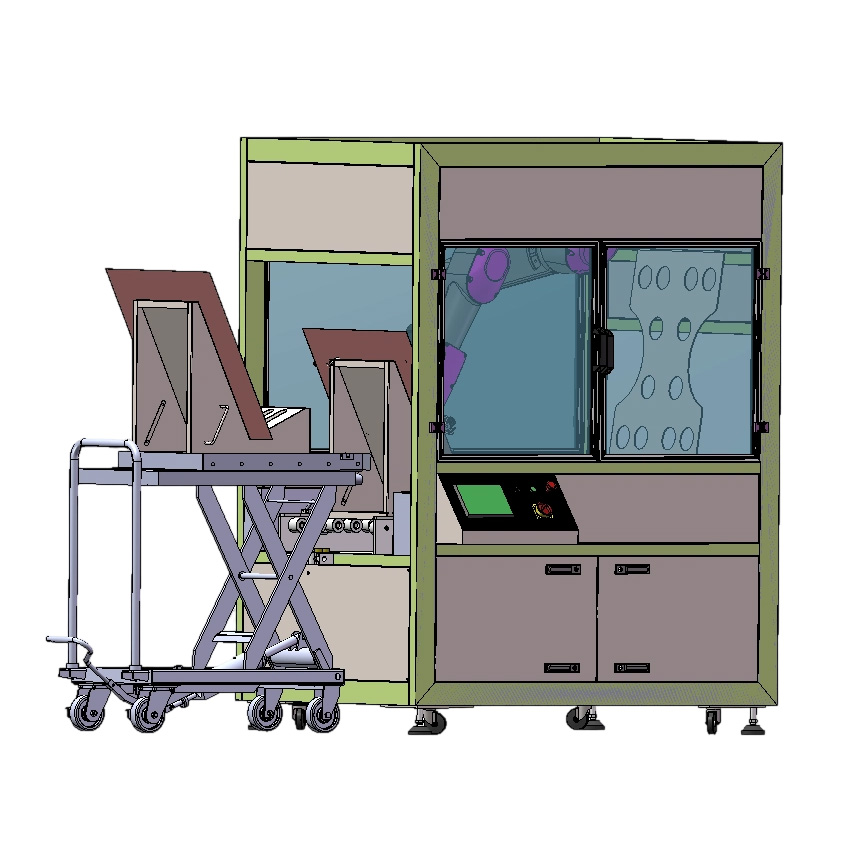

Single Station Four Axis Robot Loader/Unloader
The machine suitable for loading/unloading product befor or after scrubbing machine(PTH,Circuit,S/M,HAL),VCP,etching machine.This machine instead of traditional manual operations and can save manpower cost and create competitiveness for factory;
Request a QuoteCharacteristics & Advantages
Core technologies that set FULILION inkjet printers apart
- 1.The machine standard with two stainless steel L-rack and one adjustable height Hydraulic trolley;
- 2.Using a four axis robot grabbing pcb, it can rotate freely 360 degrees, with high flexibility and agile movements；
- 3.This robot has a wide range of applications, strong programmability, and can be applied to many processes, making it convenient for customers to manage uniformly;
- 4.Equipped with clapping and positioning function, it can clap the pcb in alternating positions from left to right or align the pcb in the center;
- 5.There is a temporary storage rack at the entrance of the machine, which can be changed to a different model or L- Rack without stopping the machine;
- 6.The robot has good flexibility and high technology content, which can enhance the trust and satisfaction of terminal customers, and enhancing the ability of factory to take orders
Main Technical Parameters
Single Station Four Axis Robot Loader/Unloader
| ITEM | Specification parameters |
|---|---|
| Conveying inner width | 860mm |
| Max.PCB Size | W730 x L630mm |
| Min.PCB Size | W300x L300 mm |
| PCB Thickness | 0.075-3.2mm |
| Pressure | 5-7KG |
| Power Supply | AC220V, 2.2KW |
| Robot working radius | 730mm |
| Max load of robot | 7KG |
| Speed | 7-9 PNLS/Min |
| Convey axle | 304 |
| Frame | Carbon steel welding+baking paint |
| Dimension | L1800xW1600xH2100mm |
| Weight | 400KG |
| PLC | Mitsubishi |
| HMI | WEINVIEW |
| Photoelectric switch | PEPPERL+FUCHS /FOTEK/KEYENC |
| Electrical components | CHNT、IDEC… |
| Pneumatic components | AirTAC |
| Motor | Leadshine/ INOVANCE/DELTA |
