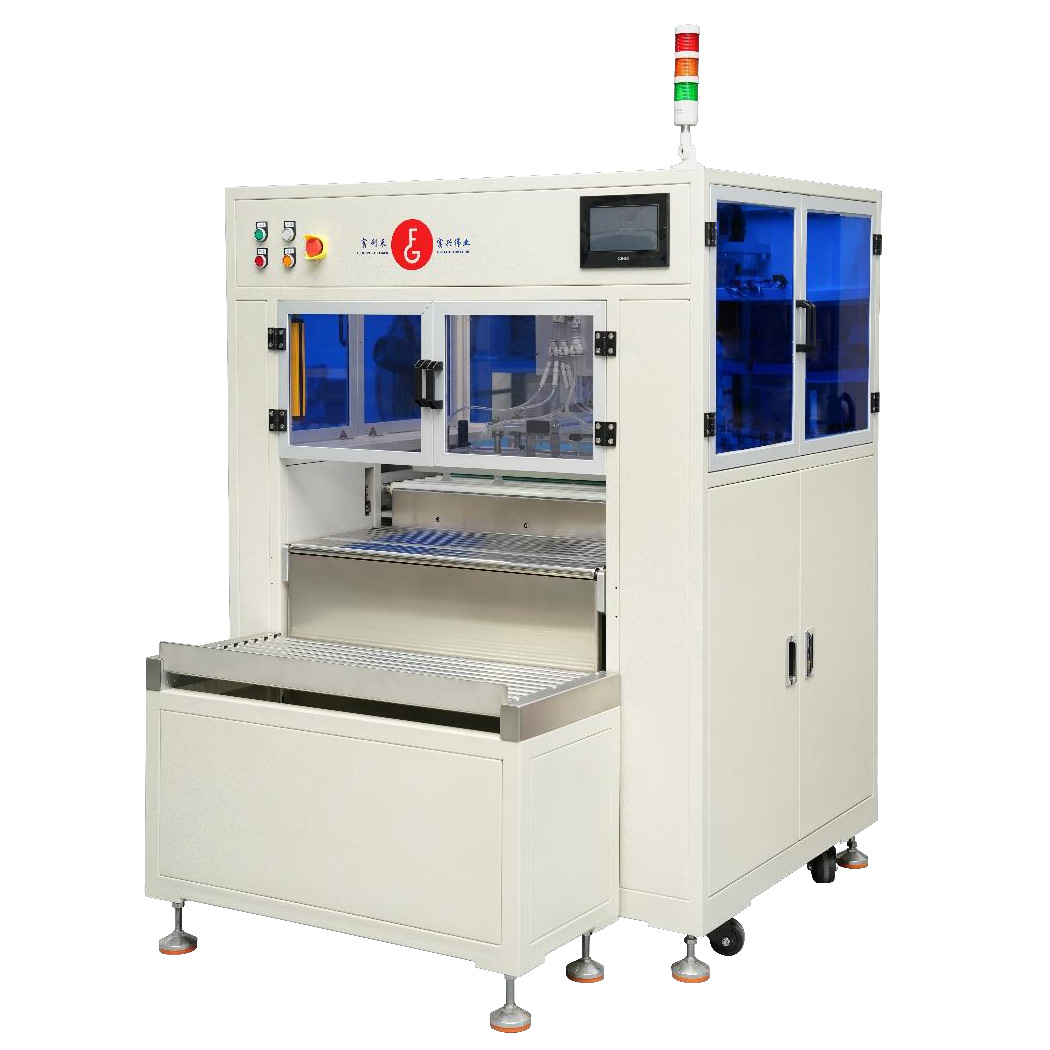

Small Panel Auto Loader
The machine is suitable for loading before cleaning machine or OSP machine. It uses suction cup to suck pcb into the machine, This machine instead of traditional manual operations, reduces the burden and pressure for the employees, makes the recruitment of workers no longer difficult, saves manpower and material resources, greatly improves the efficiency of the factory and creates greater competitiveness for the factory；
Request a QuoteCharacteristics & Advantages
Core technologies that set FULILION inkjet printers apart
- 1.Our small panel auto loader is specially developed for OSP and pcb cleaning . Faced with the complexities and irregularities of multiple sizes, miscellaneous shapes, many holes, many grooves, it successfully achieves the requirements of no direction, no position and no model for the pcb to be taken.It really solves many problems such as the flexibility and inhumanity of the machine;
- 2.The arm of the machine is driven by a closed-loop stepper motor, with stable performance and durability；
- 3.Standard configuration includes a handcart, two pallets, and a 304 stainless steel organizing frame；
- 4.Specially developed 304 stainless steel frame for neat pcb board placement on handcart；
- 5.The machine reserves the function of online control with the horizontal line；
- 6.You can place the PCB board on the handcart and wait for the machine worktable to automatically lower to the lowest position before pushing the handcart into the machine;
- 7.The suction cup group adopts the most advanced octopus suction cup with a stop valve function. When the suction nozzle is sucked on the hole or gong empty position, the suction nozzle will automatically close the stop valve to prevent air leakage and affect suction force;
- 8.The machine has an automatic dust blowing function；
Main Technical Parameters
Small Panel Auto Loader
| ITEM | Specification parameters |
|---|---|
| Conveying inner width | 860 mm |
| Max.PCB Size | W650 x L390 mm |
| Min.PCB Size | W50 x L100 mm |
| PCB Thickness | 0.2-3.2mm |
| Pressure | 5-7KG |
| Power Supply | AC220V,600W |
| Speed | 30+/-5times/Min |
| Sucker type | Octopus's suckers |
| Frame | Carbon steel welding+baking paint |
| Dimension | L1000xW1230xH1650mm |
| Weight | 350KG |
| PLC | XINJIE |
| HMI | XINJIE |
| Photoelectric switch | Panasonic /FOTEK… |
| Electrical components | CHNT、IDEC… |
| Pneumatic components | AirTAC |
| Motor | Leadshine/INOVANCE/ FT |
