Small Panel Auto Unloader

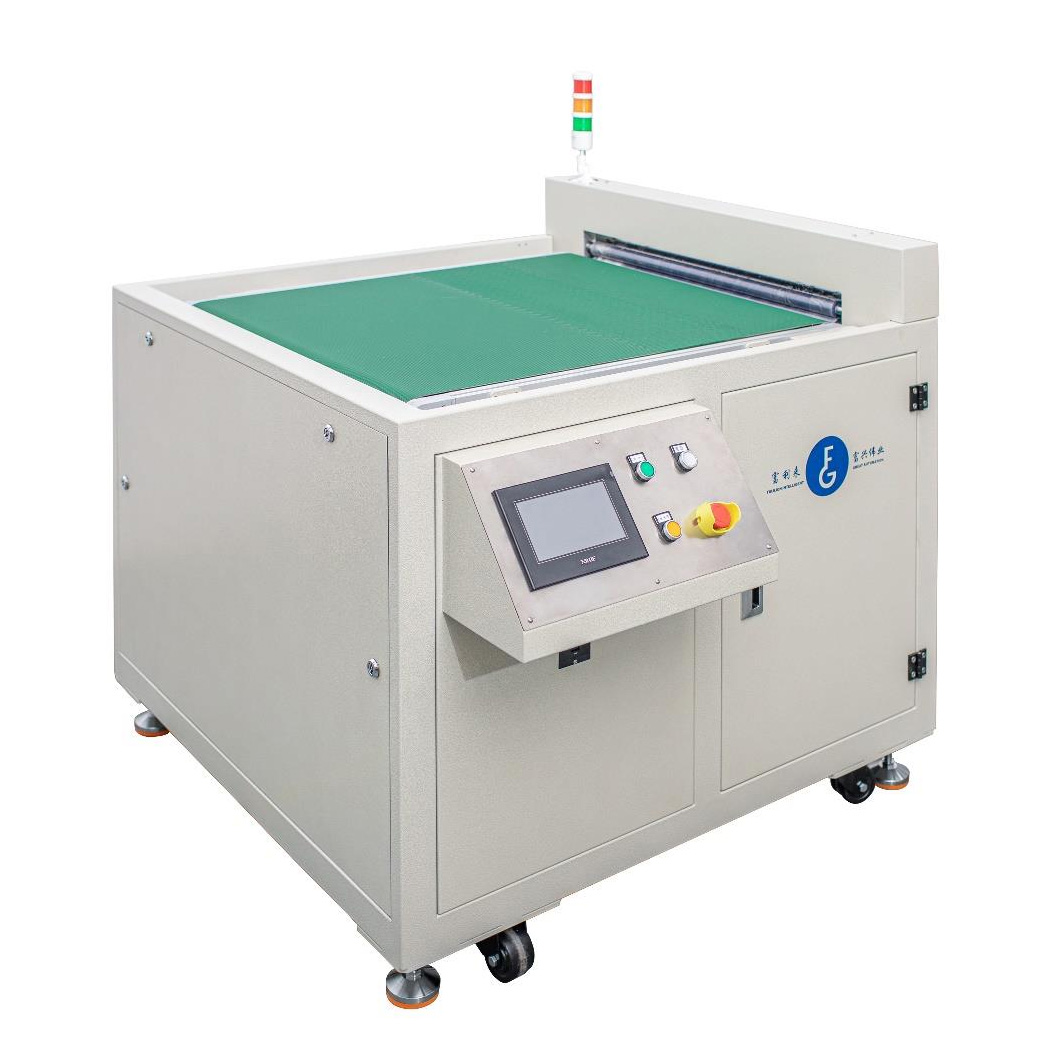

The machine is suitable for auto unloading after OSP or cleaning machine. It adopts a 1-meter-long movable belt for unloading. After a row is fully collected, the belt automatically moves back and changes lines, replacing traditional manual operations, saving labor costs and enhancing the competitiveness of the factory;
Request a QuoteCharacteristics & Advantages
Core technologies that set FULILION inkjet printers apart
- 1. A movable belt is used on the working table, which can accommodate several rows pcb at the same time;
- 2.The height of the storage board can be selected and controlled on the touch screen, divided into "half height" and "full height" modes. The height of the full height mode is about 180mm, while the height of the half height mode is adjustable from 80-120mm (controlled by a photoelectric switch);
- 3.The conveyor belt is driven by a stepper motor, with precise and controllable walking distance. The distance of each movement can be set arbitrarily on the touch screen;
- 4.Suggest using our company's small board auto loader in the front of OSP or cleaning machine for better results；
Main Technical Parameters
Small Panel Auto Unloader
| ITEM | Specification parameters |
|---|---|
| Conveying inner width | 800mm |
| Max.PCB Size | W690 x L380 mm |
| Min.PCB Size | W50 x L100 mm |
| PCB Thickness | 0.2-3.2mm |
| Pressure | / |
| Power Supply | AC220V,800W |
| Speed | 0-8M/Min |
| Belt length for unload | 1000 mm |
| Frame | Carbon steel welding+baking paint |
| Dimension | L1177xW1300xH1100mm |
| Weight | 250KG |
| PLC | XINJIE |
| HMI | XINJIE |
| Photoelectric switch | Panasonic /FOTEK… |
| Electrical components | CHNT、IDEC… |
| Motor | Leadshine/INOVANCE/ FT |
