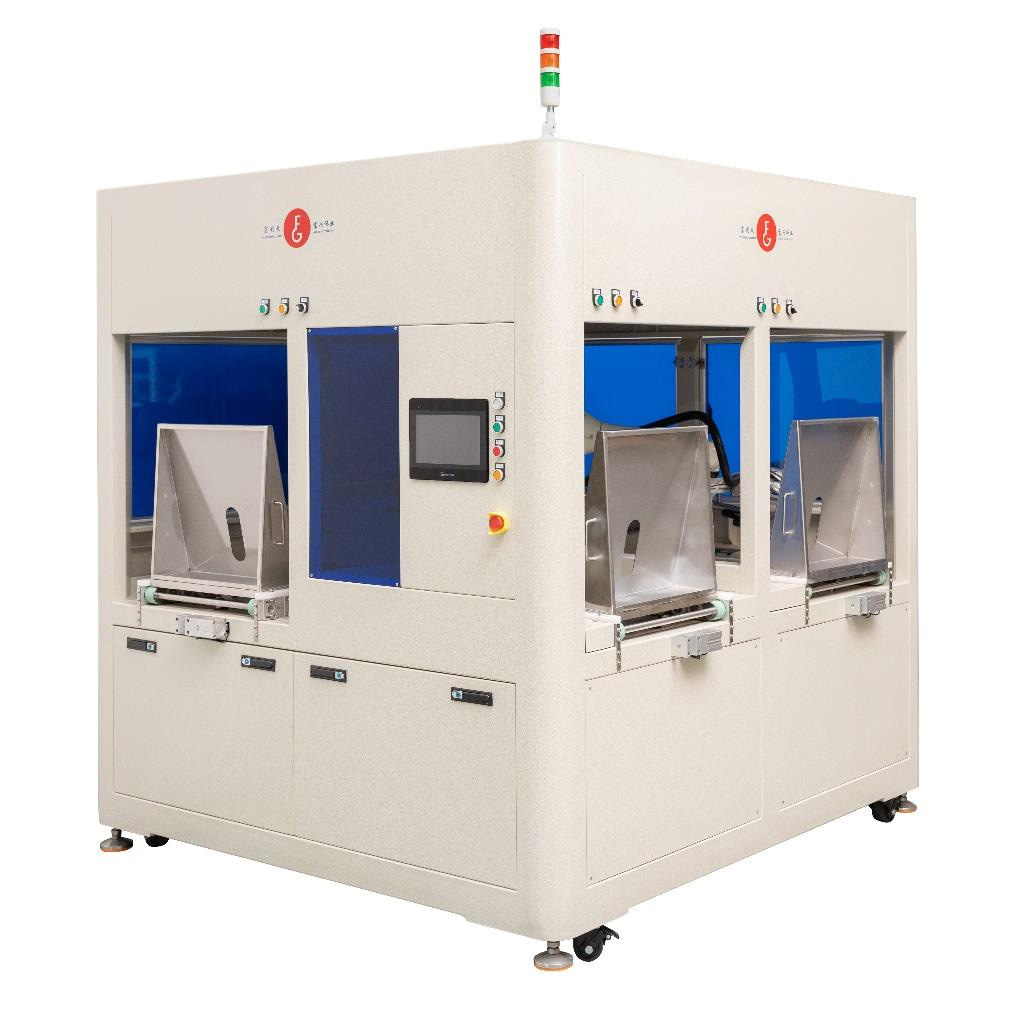

Three Station Six Axis Robot Loader/Unloader
The machine suitable for loading/unloading product befor or after scrubbing machine(PTH,Circuit,S/M,HAL),VCP,etching machine.This machine instead of traditional manual operations and can save manpower cost and create competitiveness for factory;
Request a QuoteCharacteristics & Advantages
Core technologies that set FULILION inkjet printers apart
- 1.The machine standard with six stainless steel L-rack and three adjustable height Hydraulic trolley;
- 2.Using a six axis robot grabbing pcb, it can rotate freely 360 degrees, with high flexibility and agile movements；
- 3.This robot has a wide range of applications, strong programmability, and can be applied to many processes, making it convenient for customers to manage uniformly;
- 4.Equipped with clapping and positioning function, it can clap the pcb in alternating positions from left to right or align the pcb in the center;
- 5.There is two panel ultrasound detection device at the exit of the machine, which will automatically alarm when the machine detects the presence of two panel boards;
- 6.The robot has good flexibility and high technology content, which can enhance the trust and satisfaction of terminal customers, and enhancing the ability of factory to take orders
- 7.The machine can be connected to the MES system and interface with AGV functions;
Main Technical Parameters
Three Station Six Axis Robot Loader/Unloader
| ITEM | Specification parameters |
|---|---|
| Conveying inner width | 860mm |
| Max.PCB Size | W730 x L630mm |
| Min.PCB Size | W300x L300 mm |
| PCB Thickness | 0.075-3.2mm |
| Pressure | 5-7KG |
| Power Supply | AC220V, 2.2KW |
| Robot working radius | 730mm |
| Max load of robot | 7KG |
| Speed | 7-9 PNLS/Min |
| Convey axle | 304 |
| Frame | Carbon steel welding+baking paint |
| Dimension | L1887xW2053xH2150mm |
| Weight | 800KG |
| PLC | Mitsubishi |
| HMI | WEINVIEW |
| Photoelectric switch | PEPPERL+FUCHS /FOTEK/KEYENC |
| Electrical components | CHNT、IDEC… |
| Pneumatic components | AirTAC |
| Motor | Leadshine/ INOVANCE/DELTA |
