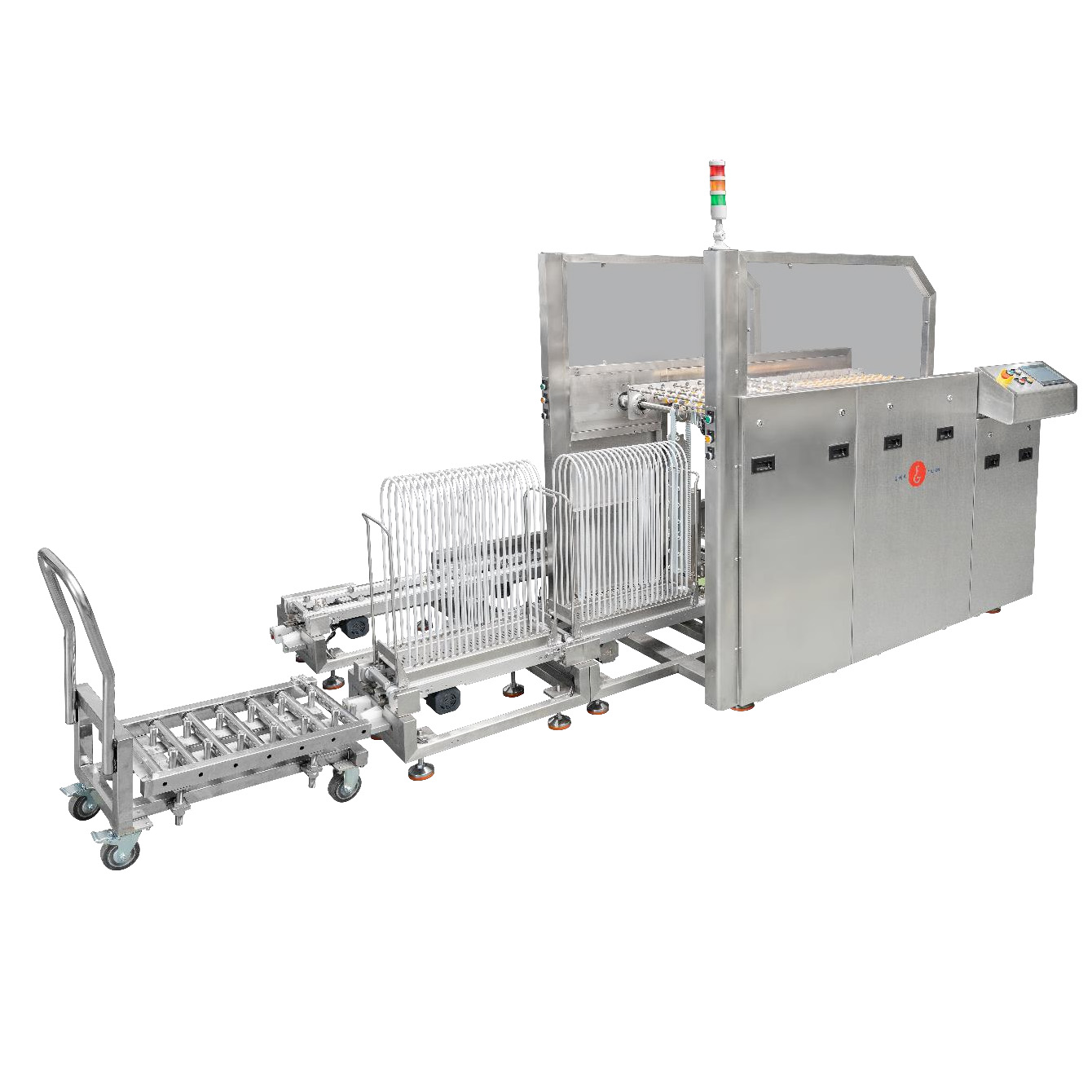

U-rack Auto Loader
This machine is suitable for automatic loading and unloading for fully automatic exposure machines or developing machines, solving the problem of other machines being prone to scratches and replacing traditional manual operations. It saves manpower and resources, improves product quality, and creates greater competitiveness for the factory。
Request a QuoteCharacteristics & Advantages
Core technologies that set FULILION inkjet printers apart
- 1.The machine standard with one 304 stainless steel U- rack and one trolley;
- 2.Used PLC and HMI control, easy operation, high degree of automation;
- 3.Using a U-rack for loading, unloading, and transportation can avoid scratches caused by contact and transportation of the board, it particularly suitable for exposure and development processes；
- 4.The machine can automatically complete the exchange of U-rack without the need for manual operation；
- 5.The machine has a central clapping frame function; Align the pcb in the center；
- 6.The roller conveyor motor and clapper motor both use stepper motors, with precise and adjustable positioning and speed
- 7.The transmission mechanism for the entry and exit of the U-rack adopts a servo motor and screw module, which has stable and durable performance;
Main Technical Parameters
U-rack Auto Loader
| ITEM | Specification parameters |
|---|---|
| Conveying inner width | 900mm |
| Max.PCB Size | W730 x L630mm |
| Min.PCB Size | W300 x L250 mm |
| PCB Thickness | 0.4-3.2mm |
| Conveying height | 1050+/-30 |
| Pressure | 5-7KG |
| Power Supply | AC220V,2KW |
| Speed | 6-8PNLS/Min |
| Frame | 304 |
| Dimension | L2377xW1882xH1750mm |
| Weight | 500KG |
| PLC | Mitsubishi |
| HMI | WEINVIEW |
| Photoelectric switch | PEPPERL+FUCHS /FOTEK/KEYENC |
| Electrical components | CHNT、IDEC… |
| Pneumatic components | AirTAC |
| Motor | Leadshine/ INOVANCE/DELTA |
