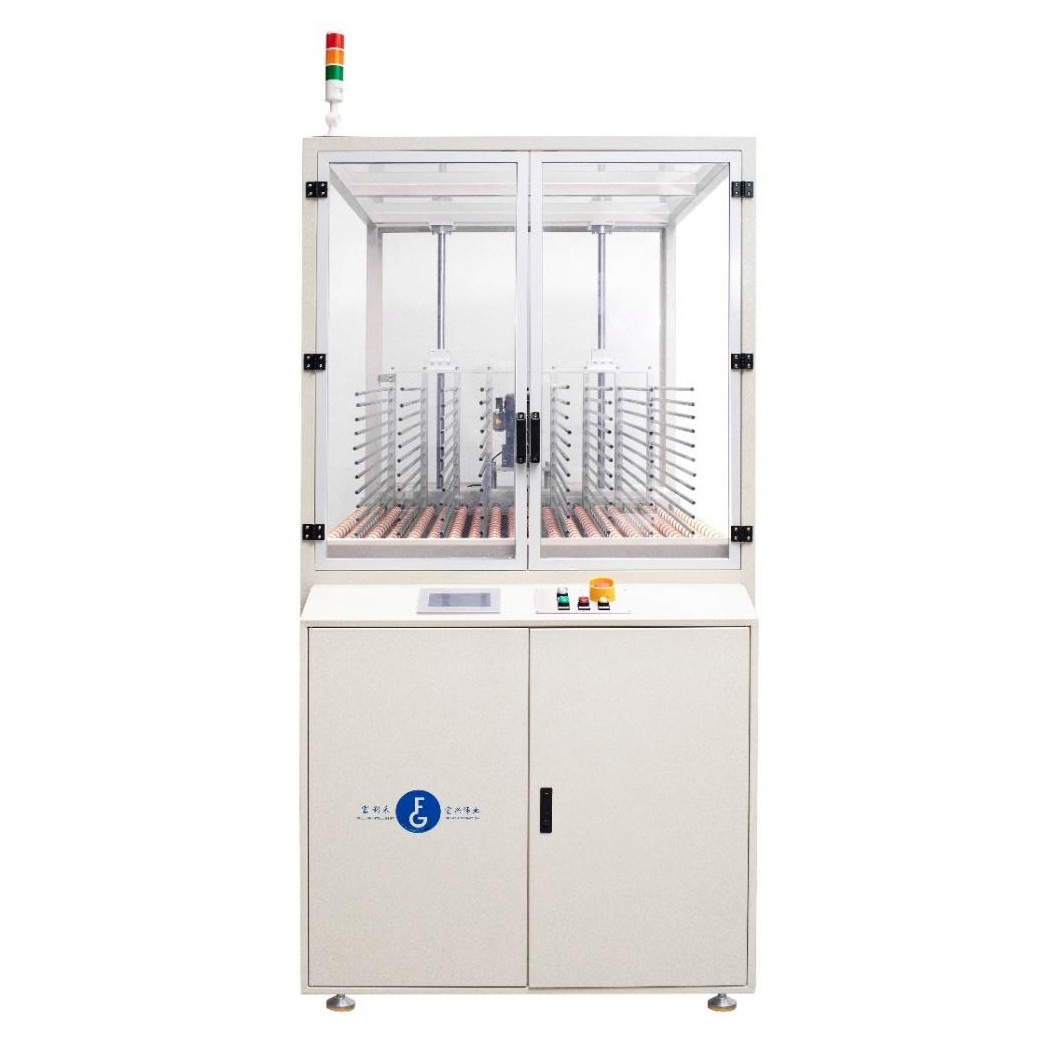

Vertical lifting Buffer
The machine is suitable for dry film laminator, printing machines, or other process. It balances the production speed of upstream and downstream equipment or automatically stores temporary when online equipment failures, solving the problem of poor production caused by different speeds or temporary failures of upstream and downstream equipment; It Pressure / can also be used for NG board temporary storage；
Request a QuoteCharacteristics & Advantages
Core technologies that set FULILION inkjet printers apart
- 1.The machine uses a vertical lifting method to temporarily store the board；
- 2.The temporarily stored boards will be automatically output based on the downstream machine's online signal by "last in, first out",or manually remove the board；
- 3.Used PLC and HMI control, easy operation, high degree of automation;
- 4.This machine can be connected to downstream machines and automatically stored or not stored based on downstream machine signals;
- 5.This machine has two temporary storage modes to choose, which can be used for normal board temporary storage or NG board temporary storage;
Main Technical Parameters
Vertical lifting Buffer
| ITEM | Specification parameters |
|---|---|
| Conveying inner width | 860 mm |
| Max.PCB Size | W730 x L630 mm |
| Min.PCB Size | W250 x L250 mm |
| PCB Thickness | 0.075-3.2mm |
| Pressure | / |
| Power Supply | AC220V,600W |
| Speed | 8-10 PNLS/Min |
| Buffer Qty | 20PNLS |
| Convey axle | 304 |
| Frame | Carbon steel welding+baking paint |
| Dimension | L820xW1500xH1850mm |
| Weight | 300KG |
| PLC | Mitsubishi |
| HMI | WEINVIEW |
| Photoelectric switch | PEPPERL+FUCHS /FOTEK |
| Electrical components | CHNT、IDEC… |
| Pneumatic components | / |
| Motor | Leadshine/ INOVANCE / FT/GPG |
