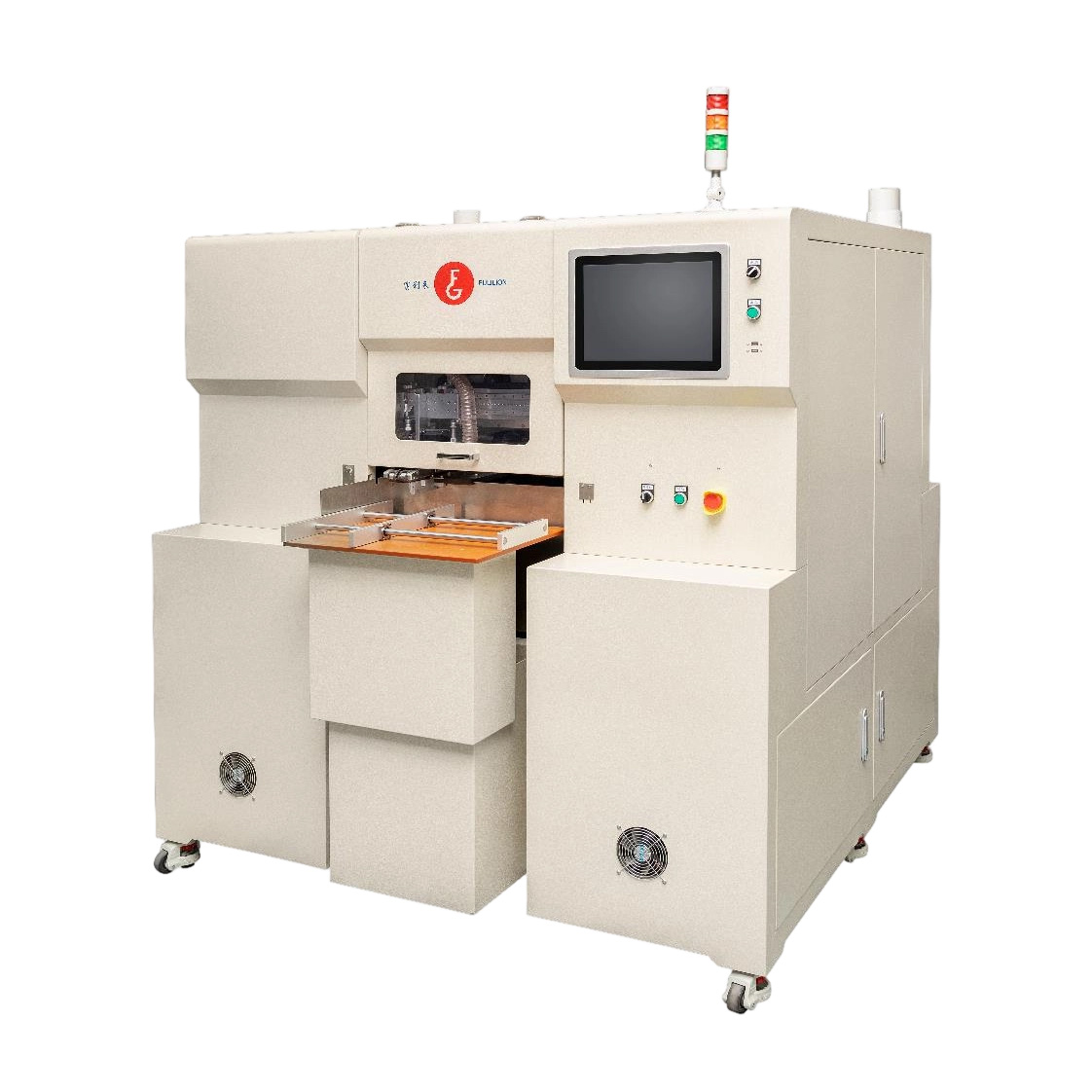

6-knife Automatic V-Cut Machine
The machine using after PCB Routing process, highly automated, with simple operation and high efficiency. it helps improve the quality and reduce costs for the factory, and creates greater competitiveness for the customers.
Request a QuoteCharacteristics & Advantages
Core technologies that set FULILION inkjet printers apart
- Controlled by PLC and computer touch screen, with stable performance!
- Driven by servo motors and stepper motors, it features high stability, high precision and durability!
- Professional operation interface, easy to learn, simple settings.
- Precise positioning, excellent V-Cut effect, and rapid, precise cutting with knife.
- The feeding speed is very fast, and the fastest production speed can reach 35m/min.
- The automatic feeding adopts an upward suction design.During feeding, the plates are separated from rubbing and scratching the surface.
- Structural optimization design, simple tool change operation, quick and precise tool change settings.
- It can be directly connected to the computer network or the customer MES system, and directly access the V-Cut data, which is convenient and fast.
- Excellent dust collection effect, improving the environmental conditions of the customer's workshop.
- Fully automatic feeding and unloading, one person can resources for customers and reducing costs.
Main Technical Parameters
6-knife Automatic V-Cut Machine
| Item | Specification parameter |
|---|---|
| Number of knife | 6-knife |
| Max. working size | W500 mm |
| Min. working size | W50 x L50mm |
| Production thickness | 0.6-3.2mm |
| Conveying speed | 1-35m/min |
| Locating method | Align to the side |
| Alignment precision | ±0.05mm |
| Parallel precision | ±0.05mm |
| Residual tolerance | ±0.05mm |
| Alignment tolerance of upper and lower knife | ±0.03mm |
| The minimum distance to the edge | 3mm |
| Number of knife jumps | 1#、2#knife,max number of single-knife is 20 |
| Air pressure | 5-7KG |
| Power Supply | AC380V, 3.0KW |
| Dust collection requirements | 30-35m3/Min,static pressure2500Pa |
| Dimension | L1750xW1650xH1700mm |
| Weight | 1300KG |
