PCB circuit inkjet printer (Auto loading and unloading online-Connecting scrubbing machine,Connecting Etching machine)
This PCB circuit inkjet printer can print PCB circuit, circuit characters, QR codes on PCB boards, replacing traditional manual screen printing, saving labor costs and the production process and costs of screen production. It also avoids quality issues such as deformation of film and screen production, improving quality and reducing consumption for factories, and creating greater competitiveness!
Request a QuoteCharacteristics & Advantages
Core technologies that set FULILION inkjet printers apart
- 1.This machine is driven by a linear motor, with low noise and high accuracy. The base and crossbeam are made of marble, which is highly stable, high-precision, and durable;
- 2.Using pcb edge positioning, there are positioning pins on the left and down of the worktable for easy positioning and easy operation;
- 3.Memory clamping, without the need to manually input the size of the board, simply place the board on the workbench, drag the horizontal and vertical fixtures to the board edge, and the machine automatically learns and remembers the position, which is simple, convenient, and efficient;
- 4.Adopting high-end printing head, with fine characters, controllable line width, and controllable thickness of ink. Adopting the latest LED UV lamp curing system, it has good uniformity of illumination, two stage adjustable power, and precise adjustment of the distance between the nozzle and the UV lamp.it can be done immediately curing after printing and can be directly etched;
- 5.Variable point control inkjet, also known as grayscale printing, or "multi bit printing," refers to the function of fusing multiple ink dots into a large ink dot within a nozzle hole, which can spray different sizes of ink dots. Gray scale printing has a good effect on the transition color from deep to light, optimizing circuit effects, controlling line width and thickness, and controlling color block thickness (minimum 20 μm Below);
- 6.Our company has developed a fully enclosed ink circuit internal circulation system, which automatically circulates within the ink circuit. When in standby, it can also make the internal ink indirectly active, preventing ink deposition and accumulation from causing nozzle blockage;
- 7.Directly using Gerber data printing eliminates the need for film and screen printing, eliminating the need for manual screen printing and other processes, avoiding quality issues in these processes and improving product quality；
- 8.Especially suitable for small and medium-sized batch production, it reduces the production time of film and screen printing, allows for production at any time, saves time in circuit processing and film and screen printing costs, and accelerates delivery to customers；

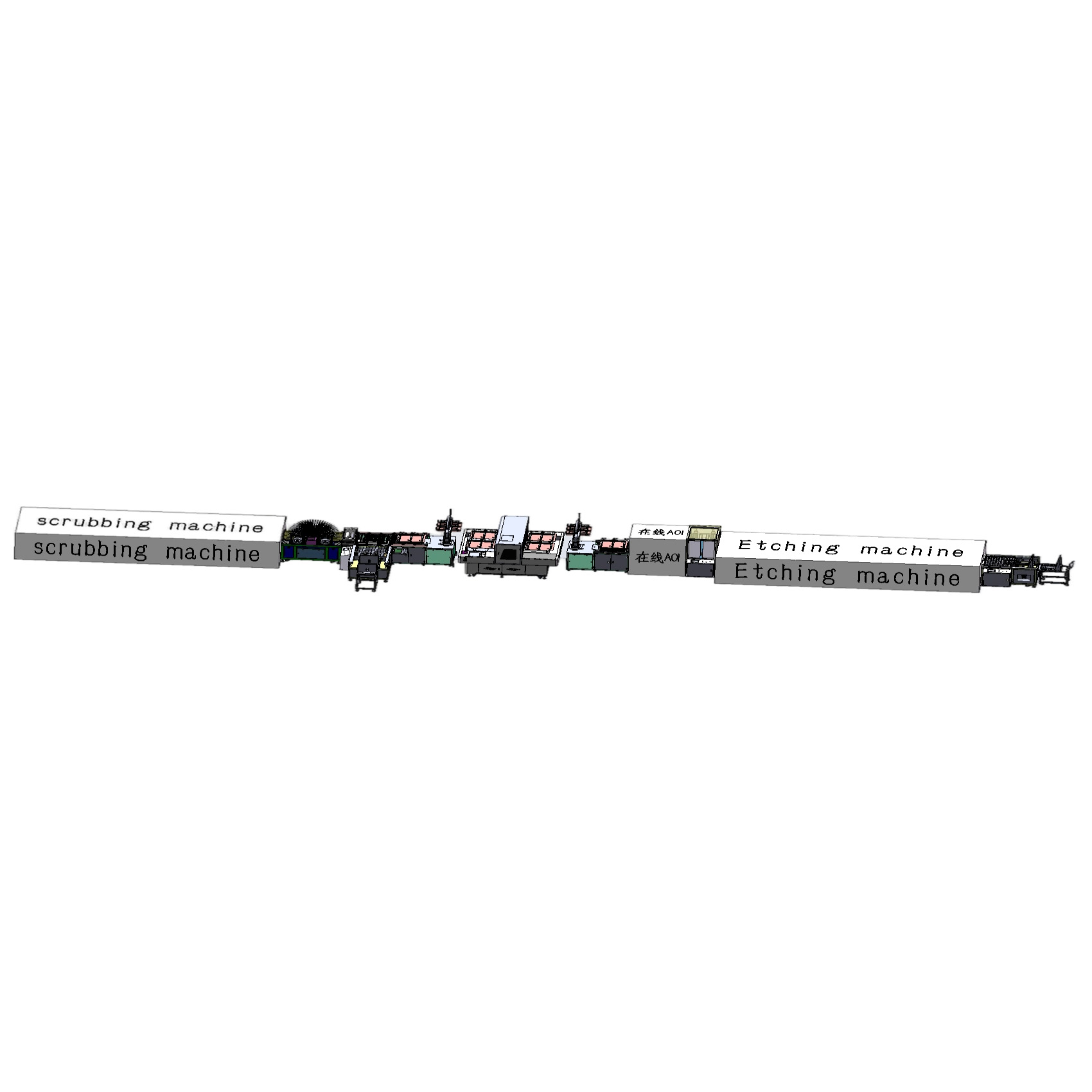

- 9.Directly connected to the scrubbing machine at the front, with cooling and side exit buffer loader, while the rear uses a L-rack auto unloader to unloading for prevent pcb scratches. Robots are used for loading and unloading, which is simple, convenient, and highly flexible；
Main Technical Parameters
PCB circuit inkjet printer (Auto loading and unloading online-Connecting scrubbing machine,Connecting Etching machine)
| Item | Specification/parameters |
|---|---|
| Max.working Size | L730 x W630 mm |
| Min.Working Size | L350 x W300mm |
| PCB Thickness | 0.1-7.0mm |
| Min printing legend | H0.6xW0.75mm |
| Max printing line width | ≧0.3/0.3mm |
| Max printing speed | 360-500Side/H (one machine) |
| Qty of print head | 7-9 PCS |
| Qty of nozzles | 1024/pcs |
| Printing point size | 0.07mm |
| Max. Resolution | 900*1440 |
| Max.white ink block | 100*100mm |
| QR code | Have |
| Bar code | Have |
| Min QR code | 3*3 mm |
| Printing ink | GREAT/Taiyo UV ink |
| Cure Method | UV LED |
| Positioning Method | pcb edge positioning |
| Alignment accuracy | 35um |
| Fixed mode | Four edge clamping, min. clamping 3.75mm |
| Printing mode | Standard/MP/precision |
| MES | Have |
| Pressure | 5-7KG |
| Power Supply | AC220V, 6.0KW (one machine) |
| Working environment | 15-25℃，30-70% |
| Dimension | L12*W3.34*H1.7 m |
| Weight | 5000KG (one machine) |
